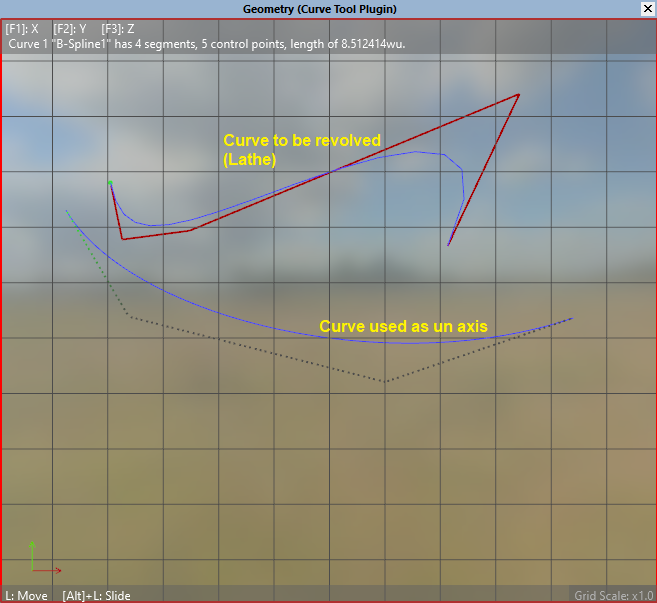

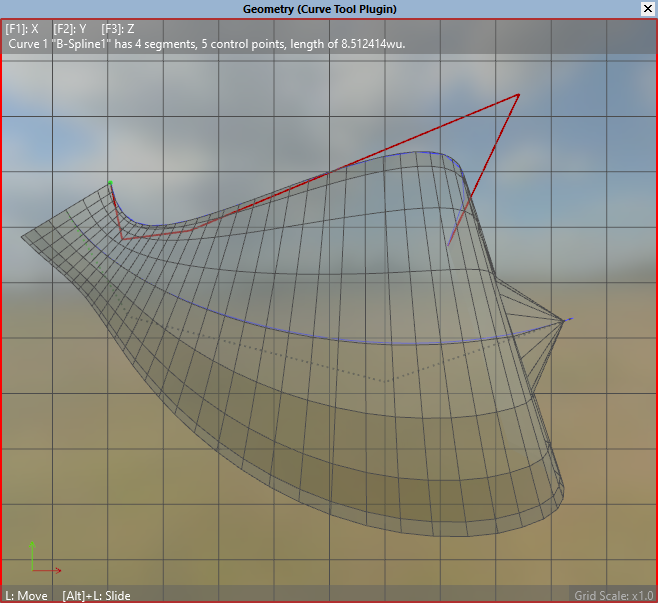

It's still not available, but here is the Lathe command using a curve as axis of revolution.

I looked for this option in other 3D App and I couldn't find. Maybe it has another name. If someone knows about it, please let me know.

Usually it's expected to be used a smooth curve for this action, but I can't impose this limit so is up to the user do not try crazy ones expecting to get nice results. (it's impossible) Wink

Wink

[Image: Lathe-curve-axis-4.png]

[Image: Lathe-curve-axis-5.png]

[Image: Lathe-curve-axis-6.png]

[Image: Lathe-curve-axis-7.png]

Now I should be able to build that mouthpiece for the vintage phone. Smile
